Products intro:

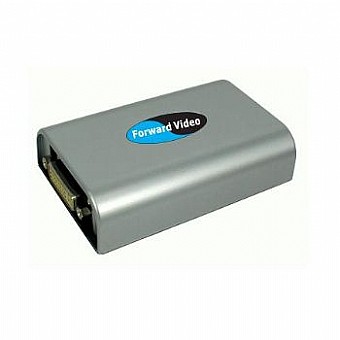

The EasyCAP008 USB to DVI Adapter allows you to connect an extra display to your PC or Laptop’s USB port. The connected display can be configured to either mirror or primary screen, or extend the Windows desktop allowing visibility of more applications at the same time. The EasyCAP008 USB to DVI Adapter driver used to control the extra screen uses very little computer resource and offers a vast array of screen resolutions and color depth. This ensures that there is little difference in performance between a directly connected screen and a screen connected through the EasyCAP008 USB to DVI Adapter. The EasyCAP008 USB to DVI Adapter supports all analogue displays with a DVI connector. VGA displays can also be connected using a suitable DVI VGA converter. You can connect up to 6 pieces EasyCAP008 USB to DVI Adapters to one PC as same time, and each one can works for different using.

Detailed:

DVI Support The DVI output on the EasyCAP008 USB to DVI Adapter is via a standard 29-pin DVI-I Dual Link connector. This should be connected directly to display. The DVI connector may be plugged and unplugged while the EasyCAP008 USB to DVI Adapter is on. The EasyCAP008 USB to DVI Adapter should be connected to a USB 2.0 port. Supported Modes There are three components that make up the screen mode: 1, Resolution: In common usage, this refers to the number of pixels displayed on screen horizontally and vertically. 2, Color Depth: This defines the number of different colors that can be shown on the screen at the same time. 3, Refresh rate: Measures the speed that the entire screen is rescanned. Below is a list of refresh rates Supported at various resolutions and color depths for the EasyCAP008 USB to DVI Adapter.  Resolution Name Refresh rates available at 16bit color quality Refresh rates available at 32bit color quality 640×480 VGA 60 72 75 60 72 75 800×600 SVGA 56 60 72 75 85 56 60 72 75 85 1024×768 XGA 60 70 75 85 60 70 75 85 1280×768 WXGA+ 60 75 85 60 75 80 1280×1024 SXGA 60 75 85 60 75 1440×900 SXGA+ 60 75 85 60 75 85 1600×1200 UXGA 60 60 System Requirements PC with 1.2GHz or higher processor clock speed required. Intel Pentium/Celeron family, or AMD K6 / Athlon / Duron family, or compatible processor recommended. 256 megabytes(MB) of RAM or higher (512MB Recommended) Windows 2000/XP/Vista USB 2.0 port. 30MB of available disk space. Super VGA(800*600) or higher-resolution video adapter and display. CD-ROM or DVD drive Package Contents EasyCAP008 USB to DVI Adapter × 1 USB 2.0 Cable × 1 DVI to VGA Connector × 1 Quick Installation Guide × 1 Installation CD × 1
