מצלמה דיגיטלית לרופאי שיניים

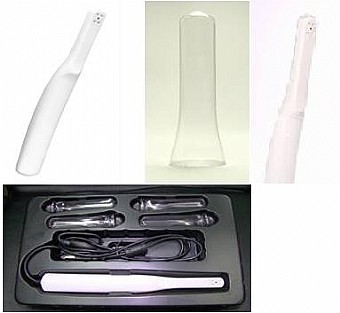

A Special USB camera with real 1.3M pixels CMOS image sensor

USB 2.0 high-speed and full-speed compliant

USB Video Class 1.1 compliant

Platform Support: Microsoft Windows XP 32bit SP2/SP3, Microsoft Windows XP 64bit, Microsoft Windows Vista 32bit, Microsoft Windows Vista 64bit, Mac OS (OS X 4.8 or later) and Linux with UVC driver (open source)

Easy snapshot by hardware button or by software control (640x480 default)

Build in 4 LED illumination

Application program included preview, take photo, video record (only for windows XP and up)

Snapshot button is built in cable to avoid vibration during operation

Ergonomics grip designed for easier and comfortable hold purpose

Small size design of lens room to let observation more freely

Be operated as a teeth observation equipment

The best equipment for personal teeth care, especially for children

Specification

Sensor: 1.3M pixels 1/4" CMOS Image Sensor (Micro3120)

Controller: Low Power consumption (SN9C236B, UVC)

                38mA (Standby), 400uA (suspend)

                Built in 3A (AE / AWB / AF)

Frame rate: 30 fps in preview mode (640x512)

Lens: Fix focus lens (x 1) with focus > 10 mm

Lens construction: 2 PCs of glass optical lens

Light source: White LED x 4

Snapshot button: Cable Control type with tact switch inside

USB standard: Comply with USB 2.0 Specification

Dimension: 198.5 x 25 x 26mm

Weight: About 38g

Power: DC 5 volt (from USB)

Power consumption: Around 68 mA (Max.)

Plug: USB serial A plug

Cable: 150 cm in cable length

          Standard USB 2.0 cable

          Tact Switch for snapshot button (OF = 130gf)

Operating temperature: -5ºC ~ 50ºC

Environment humidity: Below 85% (no dew)

Accessories

Transparent Cover

User Guide

CD ROM (Driver)

Color Box (30 x 16.5 x 4.3cm)
